Librenms集成进prometheus

librenms是个非常强悍的工具，对网络不清楚的可以透过这个工具，对网络环境有清晰的了解。

如何通过prometheus对librenms进行集成呢？

一、装pushgateway

wget https://github.com/prometheus/pushgateway/releases/download/v1.2.0/pushgateway-1.2.0.linux-amd64.tar.gz

把pushgateway放到/usr/local/bin

cat << EOF >>/etc/systemd/system/pushgateway.service
[Unit]
Description=Codis Exporter
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
ExecStart=/usr/local/bin/pushgateway --web.listen-address=:50004

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-relaod
systemctl enable --now pushgateway.service

二、配置librenms

cd /opt/librenms
vi config.php
$config['prometheus']['enable'] = true;
$config['prometheus']['url'] = 'http://127.0.0.1:50004';
$config['prometheus']['job'] = 'librenms'; # Optional

三、配置prometheus

- job_name: 'librenms'
  scrape_interval: 300s
  honor_labels: true
  static_configs:
    - targets: ['172.18.31.10:50004']
      labels:
        sms_to: '18618197196'

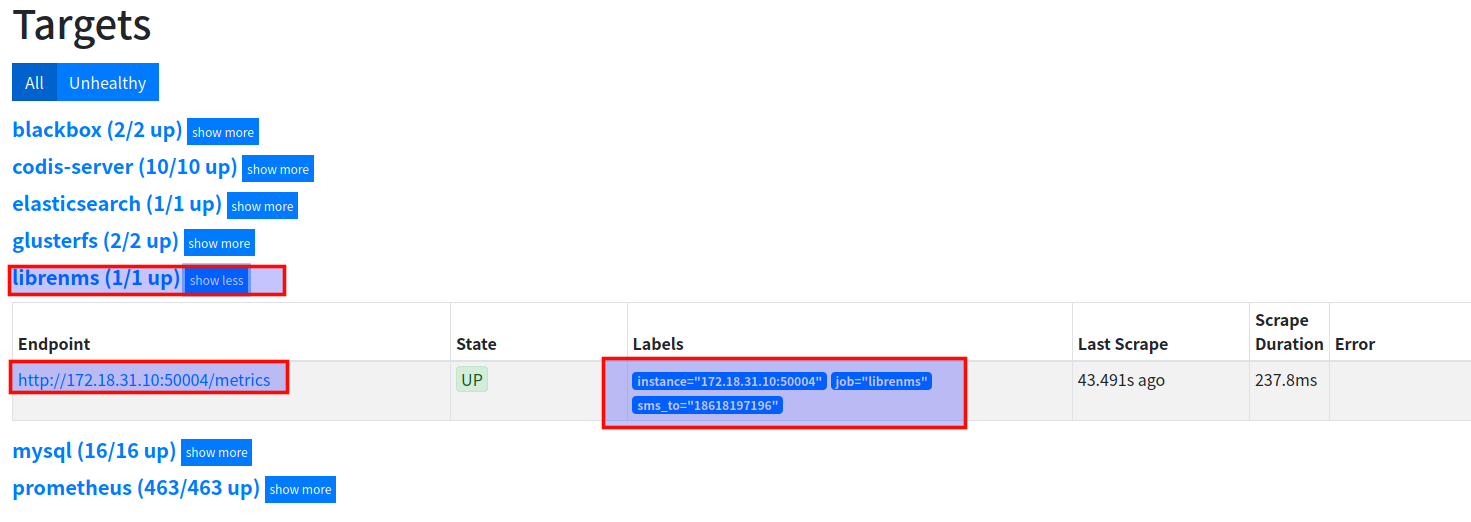

首先访问prometheus，http://172.18.31.8:9090/targets

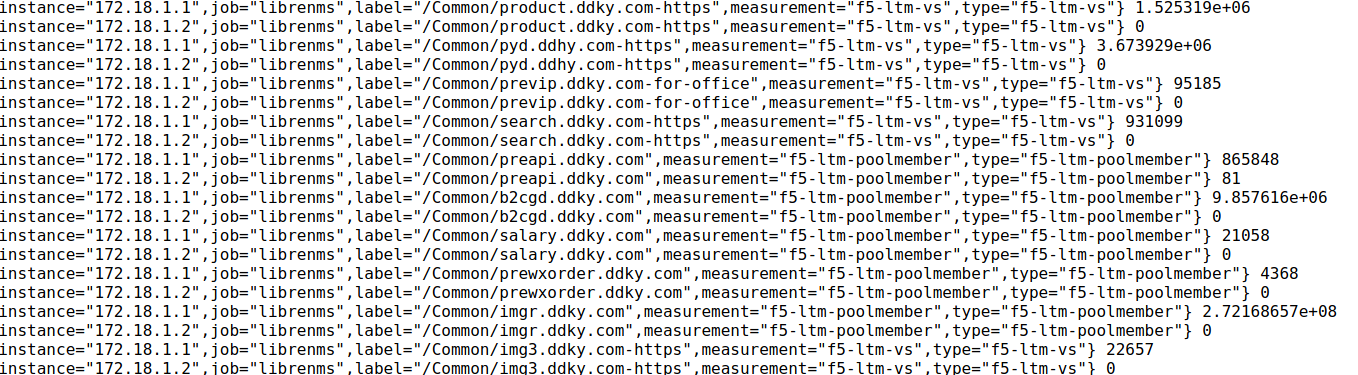

这样弄好后，再访问 http://172.18.31.10:50004/metrics

里面的东西是十分癫狂的，从交换机端口到F5，应有尽有

东西收进prometheus后，可以通过grafana对各种指标进行画图和报警
